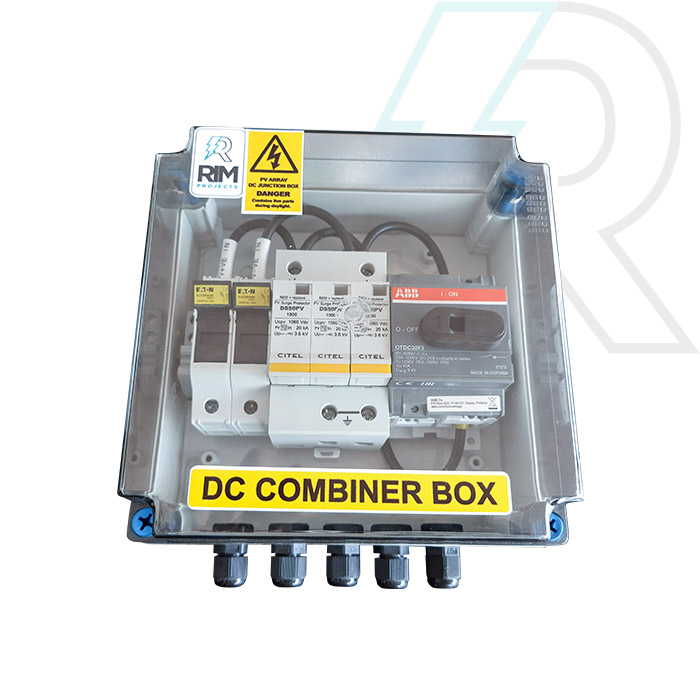

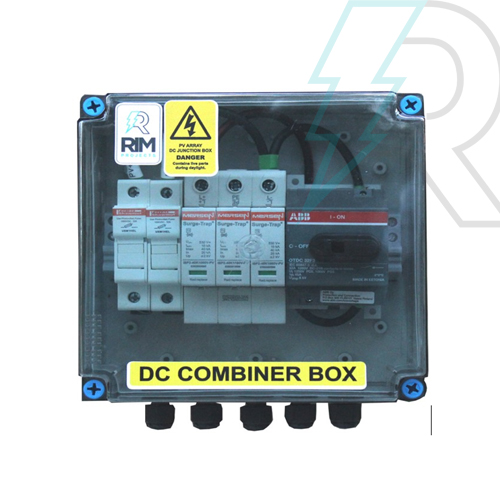

Description
- On-grid 1 in 1 out DCDB is suitable for accompanying on-grid inverter up to 8 kW in size with Single MPPT
- DCDBs expect 1 string of PV panels up to maximum of 19 no’s in series. Panels can be up to 7200 W in size.
- The DCDB is connected between PV panels and the on-grid inverter.
- Max PV voltage is 1000 V
- Max PV current is 10 A per string, totaling 10 A in 1 strings.
- DCDB is fitted with 1 set of 15 A Fuse on the positive and negative side, and a DC SPD for protecting from surge on the DC side.
- DCDB also contains a secondary protection of 16/ 32 A 1000V DC Switch which is to be used as a switch in case of operational maintenance to turn PV string on and off.
- IP 66/67 transparent top Tribox provides waterproof protection.
- Input and output are connected through Cable glands and Connectwell terminal connectors.
- Dimension: 180x180x100 mm
| No. | Components | Description | Quantity |
| 1 | Enclosure 180 x180 x100 mm | IP66/67 Tribox | 1 |
| 2 | Fuse link | 15A 1000V Eaton Make | 2 |
| 3 | Fuse Holder | 30A 1000V Eaton Make | 2 |
| 4 | DC Switch | 16/32A 1000V ABB/ Salzer | 1 |
| 5 | DC SPD | 1000V Type 2 Citel/Finder | 1 |
| 6 | DC Cable | 4sqmm Leoni Solar | As required |
| 7 | Cable Glands | Pg7 VSM Plast – Polyamide | 4 |
| 8 | Earth gland | Pg7 VSM Plast – Polyamide | 1 |
| 9 | End Sealing Terminal lugs | 6sqmm Ashwin | As required |
| 9 | End Sealing Terminal lugs | 6sqmm Ashwin | As required |
| 10 | End Sleeve | Twin Cod 6mm Ashwin | As required |
| 11 | EndClamp | Polyamide Connect well | As required |
| 12 | Mounting Rail | TBLS-35/7.5 TRINITY | As required |
